• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1951 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 320492

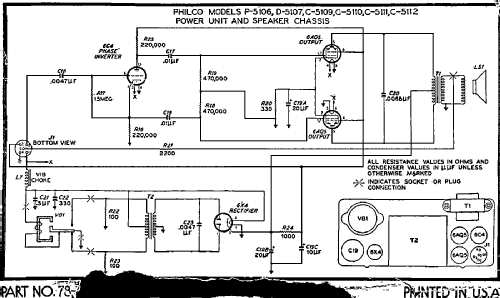

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AV6 6C4 6AQ5 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: C-5112 - Philco, Philadelphia Stg. Batt

• Shape
• Chassis only or for «building in»

• Notes

• This model is equipped with a vibrator VB100 for generation of B+.

  This is a Mopar 818 for Chrysler.

• Author
• Model page created by David Erali. See "Data change" for further contributors.
