• Country
• Canada

• Manufacturer / Brand
• Philco Products Ltd.; Toronto

• Year
• 1930/1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 184241

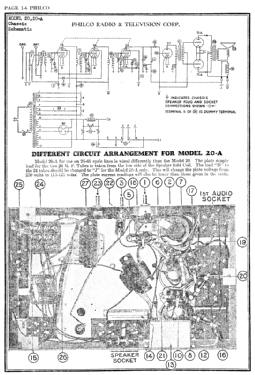

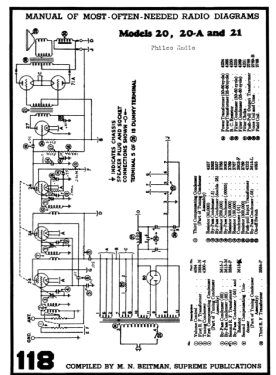

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 224 224 224 227 71A 71A 280

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 20A - Philco Products Ltd.; Toronto

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada schematics Philco page 7

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
