• Country
• Canada

• Manufacturer / Brand
• Philco Products Ltd.; Toronto

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 328318

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 78E 6A7 78E 6Q7G 6J5G 42E 42E 5Y4G

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 25-40 Hz, 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

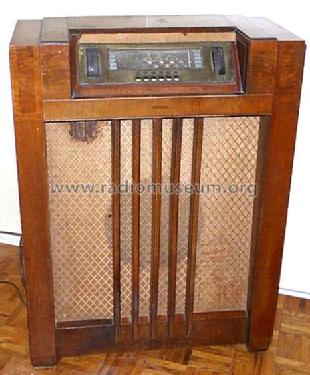

• Model: 39-340A Code 121 - Philco Products Ltd.; Toronto

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 28.3 x 37.6 x 13 inch / 719 x 955 x 330 mm

• Notes

• The Philco Products Canada model 39-340A is an 8-tube console radio with 6 pushbutton presets for AM broadcast. Also covers 5-18 MHz shortwave. Similar to USA model 39-40XX but the USA model has 8 presets.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Philco Data Sheet 70)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
