• Country
• Canada

• Manufacturer / Brand
• Philco Products Ltd.; Toronto

• Year
• 1938/1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 322299

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

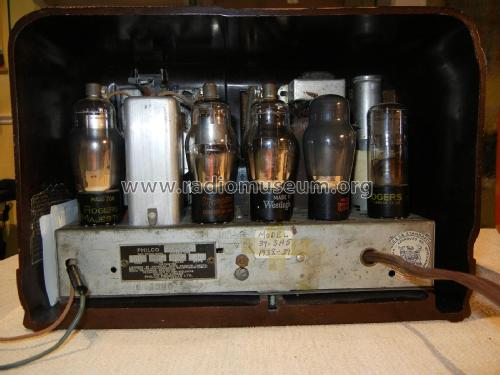

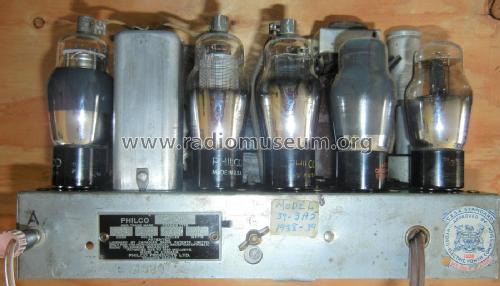

• Valves / Tubes
• 6A7E 78E 75 41E 84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material

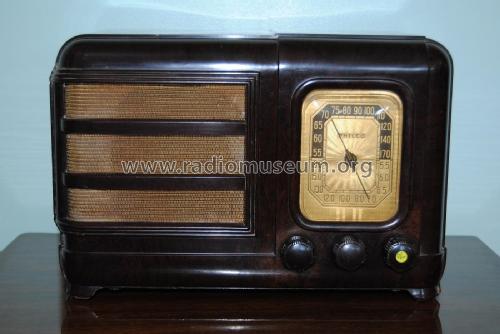

• Bakelite case

• from Radiomuseum.org

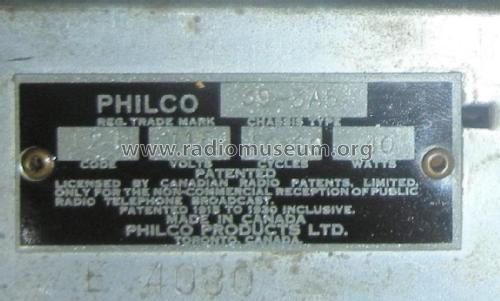

• Model: 39-3A5 code 121 - Philco Products Ltd.; Toronto

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 8.25 x 6.5 inch / 305 x 210 x 165 mm

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Mentioned in
• -- Schematic

• Author
• Model page created by Serioja Tatu. See "Data change" for further contributors.
