50 (50B)

50 ; Philco Products Ltd. (ID = 840548) Radio

50 ; Philco Products Ltd. (ID = 1519587) Radio
50 ; Philco Products Ltd. (ID = 1365299) Radio 50 ; Philco Products Ltd. (ID = 1365300) Radio
50 ; Philco Products Ltd. (ID = 1365301) Radio 50 ; Philco Products Ltd. (ID = 1365302) Radio
50 ; Philco Products Ltd. (ID = 1365303) Radio 50 ; Philco Products Ltd. (ID = 1365304) Radio
50 ; Philco Products Ltd. (ID = 1519608) Radio 50 ; Philco Products Ltd. (ID = 1519609) Radio
50 ; Philco Products Ltd. (ID = 1519611) Radio 50 ; Philco Products Ltd. (ID = 1519613) Radio
Use red slider bar for more.
50 ; Philco Products Ltd. (ID = 1365299) Radio
Philco Products Ltd.: 50 [Radio] ID = 1365299 600x848
Select picture or schematic to display from thumbnails on the right and click for download.
For model 50 (50B), Philco Products Ltd.; Toronto (Canada).:
Philco 50 Canada

Country:  Canada
Manufacturer / Brand:  Philco Products Ltd.; Toronto (Canada).
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 224 224 224 247 280
Main principle TRF without regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 50 - Philco Products Ltd.; Toronto
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 14 x 16 x 8 inch / 356 x 406 x 203 mm
Notes

Stein "Cathedral & Tombstone Radios" calls this model "50B".

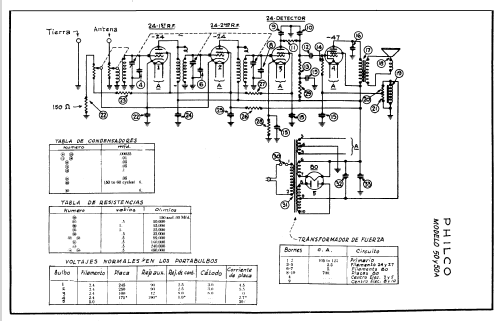

Circuit diagram reference Radio College of Canada
Mentioned in Machine Age to Jet Age II (page 210.)
Literature/Schematics (1) Canada schematics Philco page 10
Literature/Schematics (2) Cathedral & Tombstone Radios (page 192.)

Model page created by Dirk Taekels. See "Data change" for further contributors.



All listed radios etc. from Philco Products Ltd.; Toronto (Canada).
Here you find 209 models, 155 with images and 116 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
