81 Transitone Code 122

81 Transitone Code 122; Philco Products Ltd. (ID = 220853) Radio 81 Transitone Code 122; Philco Products Ltd. (ID = 220855) Radio
81 Transitone Code 122; Philco Products Ltd. (ID = 1231241) Radio 81 Transitone Code 122; Philco Products Ltd. (ID = 1231242) Radio
81 Transitone Code 122; Philco Products Ltd. (ID = 1503474) Radio 81 Transitone Code 122; Philco Products Ltd. (ID = 1503475) Radio
81 Transitone Code 122; Philco Products Ltd. (ID = 1514618) Radio 81 Transitone Code 122; Philco Products Ltd. (ID = 2018825) Radio
81 Transitone Code 122; Philco Products Ltd. (ID = 2018826) Radio 81 Transitone Code 122; Philco Products Ltd. (ID = 2018827) Radio
Use red slider bar for more.
81 Transitone Code 122; Philco Products Ltd. (ID = 220853) Radio
Philco Products Ltd.: 81 Transitone Code 122 [Radio] ID = 220853 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 81 Transitone Code 122, Philco Products Ltd.; Toronto (Canada).:

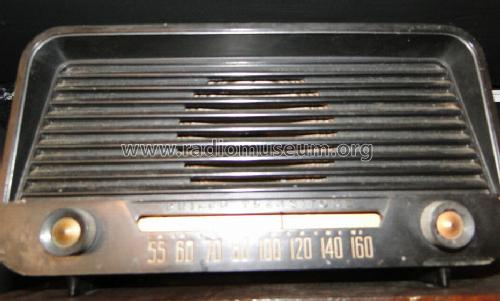

My little brown bakelite cased Philco Transitone radio built in Canada ca 1951, in lovely condition. Identical in appearance to the US built Philco 52-540 Code 122 Transitone radio. It works well too.

Country:  Canada
Manufacturer / Brand:  Philco Products Ltd.; Toronto (Canada).
Year: 1950–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 7A8 12BA6 14B6 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out
from Radiomuseum.org Model: 81 Transitone Code 122 - Philco Products Ltd.; Toronto
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11 x 6 x 5.5 inch / 279 x 152 x 140 mm
Notes

Similar in appearance to Philco USA model 52-540 Code 122. Comes in choice of Ivory, Brown, Maroon, Grey, Delft Blue or Light Green plastic cabinets.

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Source of data -- Collector info (Sammler)
Literature/Schematics (3) Philco Folder for 1951. Philco Folder "Radio-Phonographs and Table Radios" for ca. 1952.

Model page created by Howard Craven. See "Data change" for further contributors.



All listed radios etc. from Philco Products Ltd.; Toronto (Canada).
Here you find 202 models, 150 with images and 110 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
