Compact Cassette Tape Recorder TRC-20

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1967 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 284544

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / C: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Compact Cassette Tape Recorder TRC-20 - Philco, Philadelphia Stg. Batt
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

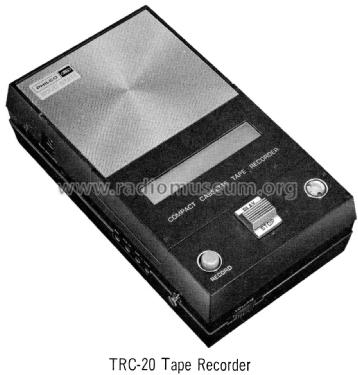

  • The Model TRC-20 Tape Recorder is a monaural all-transistor cassette type.  This model tape-records and plays back on two tracks at one speed of 1-7/8 ips.  Prerecorded stereo cassettes can also be played back although you will not get the stereo separation because the unit is a monaural amplifier with a single speaker.

    Unit can be operated at 120VAC with an external adapter.

  • Literature/Schematics (1)
  • Philco Home Radio Service Data, 1967
  • Author
  • Model page created by David Erali. See "Data change" for further contributors.
