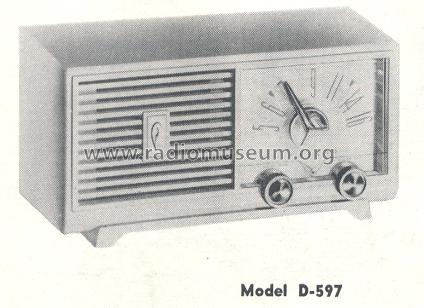

D-597 Matador Red

D-597 ; Philco, Philadelphia (ID = 183408) Radio

D-597 ; Philco, Philadelphia (ID = 183409) Radio
D-597 ; Philco, Philadelphia (ID = 151440) Radio D-597 ; Philco, Philadelphia (ID = 183407) Radio
Use red slider bar for more.
D-597 ; Philco, Philadelphia (ID = 151440) Radio
Philco, Philadelphia: D-597 [Radio] ID = 151440 600x453
Select picture or schematic to display from thumbnails on the right and click for download.
For model D-597 Matador Red, Philco, Philadelphia Stg. Batt. Co.; USA:
?

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 35C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: D-597 [Matador Red] - Philco, Philadelphia Stg. Batt
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Illuminated Dial scale.
Literature/Schematics (1) Philco Factory-Supervised Service Home Radio 1955

Model page created by Vitor Oliveira. See "Data change" for further contributors.
