• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91589

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1S5 or 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 117V; (2 x 1.5 / 75) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

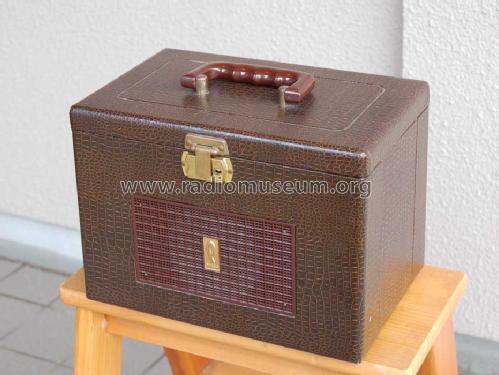

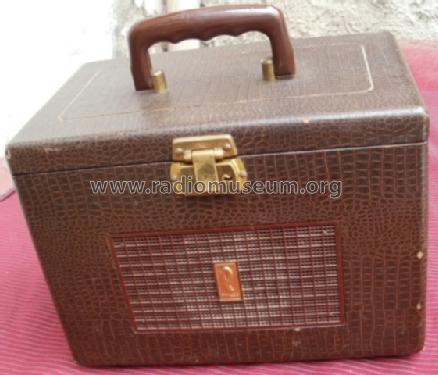

• Model: D-665 Code 124 [Brown Alligator] - Philco, Philadelphia Stg. Batt

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 8.75 x 7.5 inch / 305 x 222 x 191 mm

• Notes

• Philco Model D-665 Code 124 is a Three Power Portable AM Superheterodyne Receiver.

• Net weight (2.2 lb = 1 kg)
• 7 lb 8 oz (7.5 lb) / 3.405 kg

• Literature/Schematics (1)
• Philco Factory-Supervised Service Home Radio 1955

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 324 Folder 11 dated 7-56)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
