95 Deluxe Highboy; Philco, Philadelphia (ID = 547146) Radio
Philco, Philadelphia: 95 Deluxe Highboy [Radio] ID = 547146 533x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 95 Deluxe Highboy, Philco, Philadelphia Stg. Batt. Co.; USA:
Philco_95-Highboy-de-Luxe_Ebay seller jitneys.

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 24 24 24 27 27 27 45 45 80
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 95 Deluxe Highboy - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes

Model 95 was a "Screen Grid Plus" model and was available in a table, lowboy, highboy, Tudor highboy, and deluxe highboy cabinet. One dial (primary tuning control knob). Deluxe highboy cabinet is similar to models 76, 87, 97, 98, and 99 deluxe highboys.

Price in first year of sale 225.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

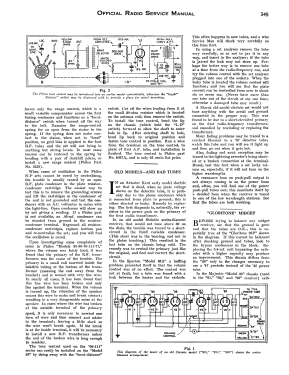

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) Pre-War Consoles (Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data)
Literature/Schematics (3) Philco Folder Form. 2120 for 1929.
