Clock Radio E-742 Lustre Ivory cabinet color

Philco, Philadelphia Stg. Batt. Co.; USA

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Philco, Philadelphia Stg. Batt. Co.; USA

Year
1956 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
83019

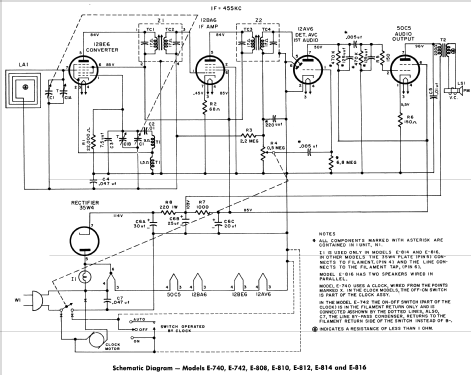

Schematics

Clock Radio E-742 ; Philco, Philadelphia (ID = 1859399) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 133079) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 133080) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 1859398) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 1859400) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 1859401) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 1860586) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 1860587) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 1860588) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 1860589) Radio — Philco, Philadelphia Clock Radio E-742 (3)

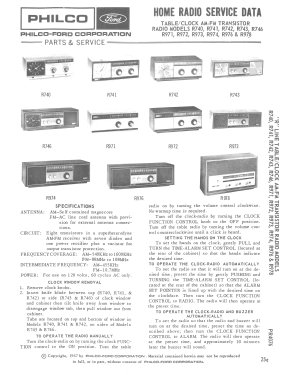

Clock Radio E-742 ; Philco, Philadelphia (ID = 2929984) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 2929985) Radio — Philco, Philadelphia Clock Radio E-742 (3)

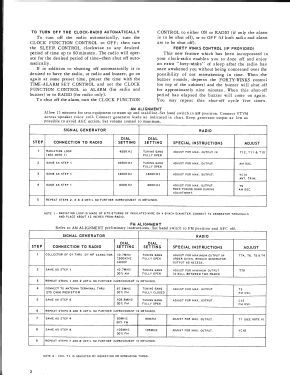

Clock Radio E-742 ; Philco, Philadelphia (ID = 2929986) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 2929987) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 2929988) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 2929989) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 2929990) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 2929991) Radio — Philco, Philadelphia Clock Radio E-742 (3)

Clock Radio E-742 ; Philco, Philadelphia (ID = 1860585) Radio — Philco, Philadelphia Clock Radio E-742 (2)

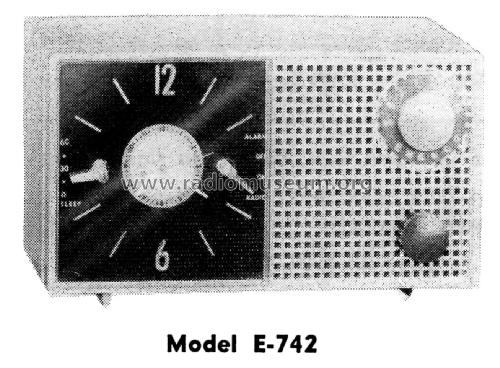

Picture from Philco Datasheet

Clock Radio E-742 ; Philco, Philadelphia (ID = 1859396) Radio — Philco, Philadelphia Clock Radio E-742 (2)
Photophact Folder

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12BE6 12BA6 12AV6 50C5 35W4

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 105-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Power out
0.9 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Clock Radio E-742 [Lustre Ivory cabinet color] - Philco, Philadelphia Stg. Batt

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Notes

The Philco E-742 is an AC operated 5 tube BC band clock radio. The BC band frequency tuning range is 540 - 1620kHz. Has Qty(1) PM 4" speaker and loop antenna mounted on the inside of the back panel.

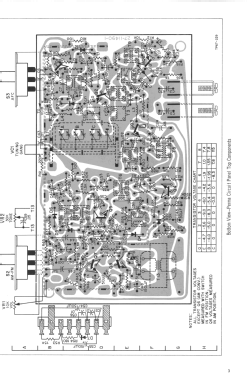

The following models use the same schematic and circuit board:

Model	Clock	Dial Light	Cabinet Color
E-740	Yes	No	Not Known
E-742	Yes	No	Lustre Ivory
E-742	Yes	No	Pink
E-808	No	No	Not Known
E-810	No	No	Lustre Ivory
E-810	No	No	Pink
E-812	No	No	Aztec Gold
E-812	No	No	Spice
E-814	No	Yes	Emerald
E-814	No	Yes	Flame
E-814	No	Yes	Lustre Ivory
E-814	No	Yes	Mahogany
E-816	No	Yes	Lustre Ivory
E-816	No	Yes	Turquoise

Mentioned in
Photofact Folder, Howard W. SAMS (Set 351, Folder 14, Date 3-57)

Literature/Schematics (1)
- - Manufacturers Literature (Philco Service Manual PR-3034 Dated 1956)

Literature/Schematics (2)
Beitman Radio Diagrams, Vol. 17, 1957 (Page 96, 97)

Author
Model page created by Egon Penker. See "Data change" for further contributors.
