For model E-814 Emerald cabinet color, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner

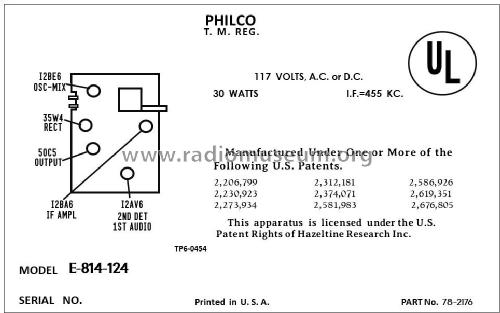

Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.9 W (unknown quality)
from Radiomuseum.org Model: E-814 [Emerald cabinet color] - Philco, Philadelphia Stg. Batt
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes

The Philco E-814 is an AC/DC operated 5 tube BC band receiver.  The BC band frequency tuning range is 540 - 1620kHz.  Has Qty(1) PM 4" speaker and loop antenna mounted on the inside of the back panel.

The following models use the same schematic and circuit board:

Model Clock Dial Light Cabinet Color
E-740 Yes No Not Known
E-742 Yes No Lustre Ivory
E-742 Yes No Pink
E-808 No No Not Known
E-810 No No Lustre Ivory
E-810 No No Pink
E-812 No No Aztec Gold
E-812 No No Spice
E-814 No Yes Emerald
E-814 No Yes Flame
E-814 No Yes Lustre Ivory
E-814 No Yes Mahogany
E-816 No Yes Lustre Ivory
E-816 No Yes Turquoise



Mentioned in Photofact Folder, Howard W. SAMS (Set 351, Folder 14, Date 3-57)
Literature/Schematics (1) - - Manufacturers Literature (Philco Service Manual PR-3034 Dated 1956)
Literature/Schematics (2) Beitman Radio Diagrams, Vol. 17, 1957 (Page 96, 97)
