F-1440 Ford

F-1440 Ford; Philco, Philadelphia (ID = 221849) Car Radio
F-1440 Ford; Philco, Philadelphia (ID = 259732) Car Radio F-1440 Ford; Philco, Philadelphia (ID = 259733) Car Radio
F-1440 Ford; Philco, Philadelphia (ID = 259734) Car Radio F-1440 Ford; Philco, Philadelphia (ID = 259735) Car Radio
F-1440 Ford; Philco, Philadelphia (ID = 259736) Car Radio F-1440 Ford; Philco, Philadelphia (ID = 259737) Car Radio
F-1440 Ford; Philco, Philadelphia (ID = 262517) Car Radio
Use red slider bar for more.
F-1440 Ford; Philco, Philadelphia (ID = 259732) Car Radio
Philco, Philadelphia: F-1440 Ford [Car Radio] ID = 259732 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model F-1440 Ford, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1937 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 78 6A7 78 75 41 84
Main principle Superhet with RF-stage; ZF/IF 260 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: F-1440 Ford - Philco, Philadelphia Stg. Batt
Material Metal case
Dimensions (WHD) 190 x 265 x 145 mm / 7.5 x 10.4 x 5.7 inch

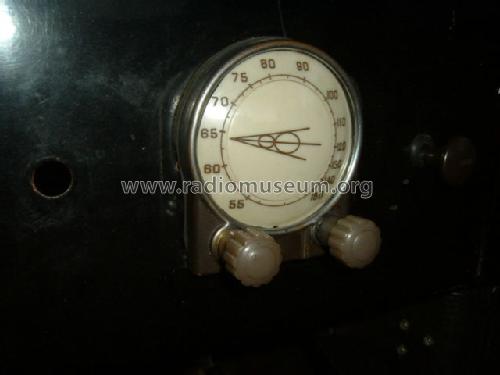

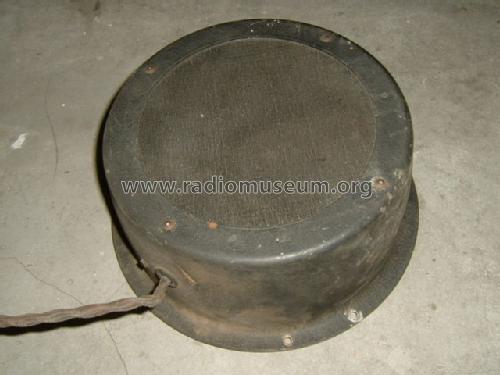

Notes This model is equipped with a vibrator for the generation of B+. The loudspeaker is mounted in a separate cylindrical metal housing, and is connected to the main body by a 3 pin connector. The tuning dial, the tuning knob and the volume control knob are separate from the main body, and are included in the dashboard of the car. The 3 position tone control is on the main body
External source of data Ernst Erb

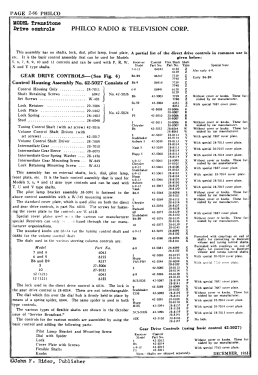

Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
