• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72209

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: G-755 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 12.375 x 6.25 x 4.5625 inch / 314 x 159 x 116 mm

• Notes

• The Philco Model G-755 is an AC operated 5 Tube AM Receiver with Electric Clock. BC Band Tuning Range: 540 to 1620KHz. This model has Qty(1) 4" PM speaker. Uses Westclox fully automatic push button timer. Available in Aqua or Lustre Ivory finish.

• Circuit diagram reference

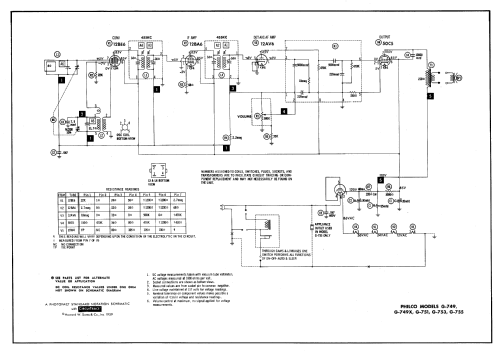

• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)

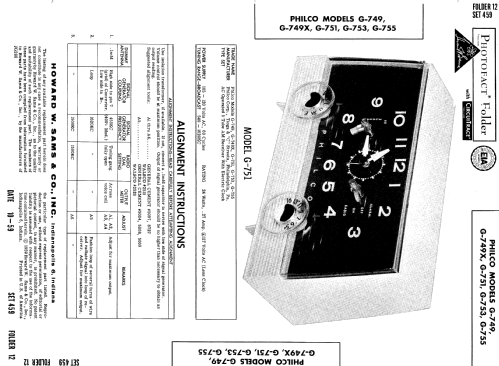

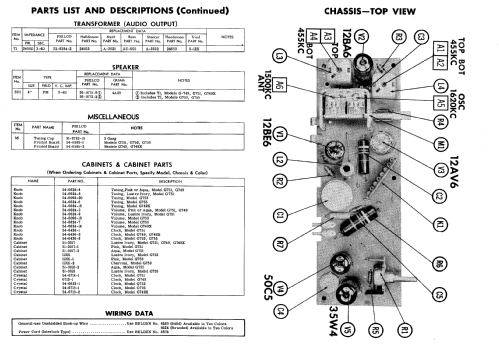

• Photofact Folder, Howard W. SAMS (Date 10-59, Set 459, Folder 12)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Literature/Schematics (3)
• Philco Folder AD-1792 for 1959.

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
