• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72213

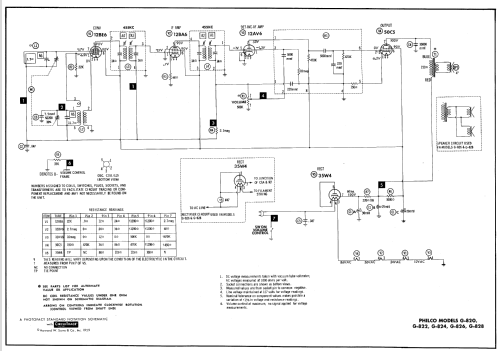

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

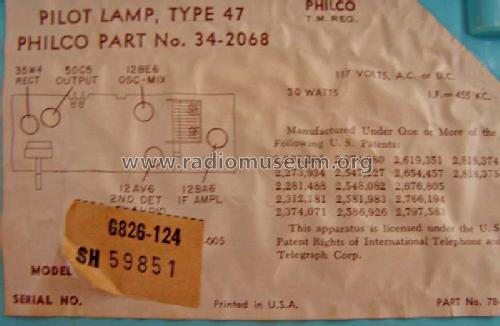

• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: G-826 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.5 x 7.625 x 4.375 inch / 318 x 194 x 111 mm

• Notes

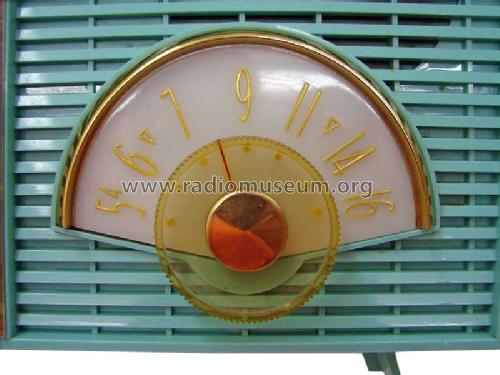

• The Philco Model G-826 is an AC/DC operated 5 Tube AM Receiver. BC Band Tuning Range: 540 to 1620KHz. Cabinet color is Lustre Ivory, Flame or Aqua. This model has Qty(2) 4" PM speakers. Has high impedance loop antenna mounted on back of radio.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 9)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Literature/Schematics (3)
• Philco Folder AD-1792 for 1959.

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
