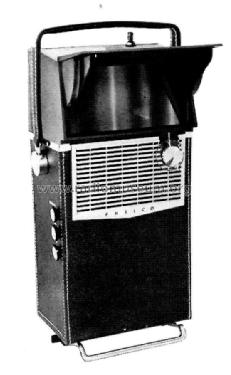

H2010L Safari Ch= 10AT10 Early

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 151150

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • 21
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 117; 7.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: H2010L Safari Ch= 10AT10 [Early] - Philco, Philadelphia Stg. Batt
  • Notes

  • There are four variants of the Philco Safari:  Model H2010L is brown leather and model H2010BL is black leather.  For each model number, there is an early version which corresponds to the 1959 schematic in the Philco Service Manual PR-3324 (this schematic was also published in the Sams supplemental folder 26S in set 460 in 1959) and the normal version, as documented in Sams set 475 folder 2 in 1960.  The differences between the early and normal versions include elimination of the sound take-off transformer in the normal version as well as some changes in transistor types used.

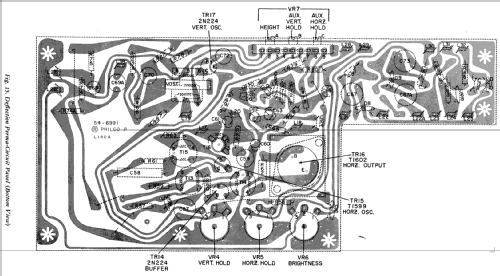

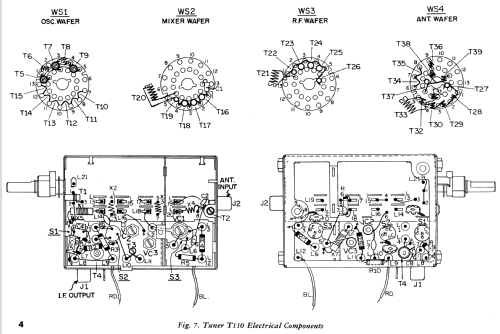

    12 channel US VHF tuner.

  • Price in first year of sale
  • 250.00 $
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Philco Television Service Manual PR-3324 (1959))
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
