• Year
  • 1959
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 156605

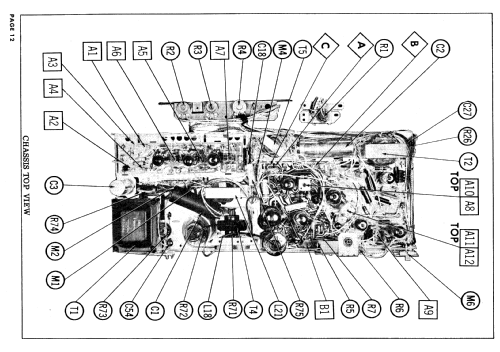

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 15
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H3412L Ch= 10L43 - Philco, Philadelphia Stg. Batt
  • Shape
  • Console with any shape - in general
  • Notes
  • The Philco H3412L is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 10L43, VHF tuner T-100D and picture tube 17DAP4 or 17DRP4. Uses Qty(1) 4" x 6" Elliptical PM speaker.
