- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 88111
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: K-780 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes

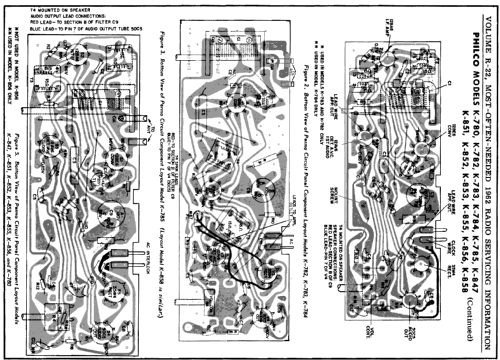

- Sams photofact, set 603, folder 3, date 11-62, features the Philco models K-780, K-782, K-783 and K-784 as the same schematic.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 22, 1962
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 603 folder 3 date 11-62)
