- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90018

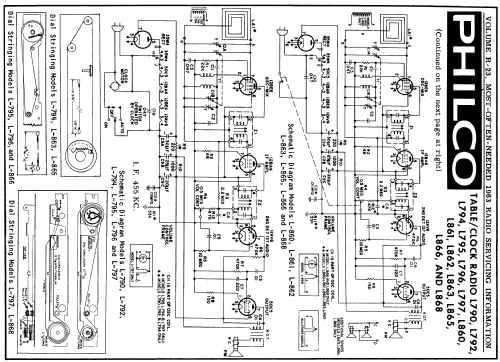

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: L861 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 7 x 4.5 inch / 305 x 178 x 114 mm
- Notes
- Sams photofact set 640 folder 9 features the Philco models L-790, L-792, L-794, L-795, L-796 and L-860, L-861, L-862, L-863, L-865, L-866 as the same schematic.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 23, 1963
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 640 folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
