For model 370 Lazyboy Late, Philco, Philadelphia Stg. Batt. Co.; USA:
Philco model 370 Lazyboy Late with Courtesy by Willie Bender.

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 35 24 35 27 35 47 80
Main principle Superhet with RF-stage; ZF/IF 260 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 9 inch = 22.9 cm
Power out
from Radiomuseum.org Model: 370 Lazyboy [Late] - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 13.5 x 23.25 x 23 inch / 343 x 591 x 584 mm
Notes Model 370 was Philco's first (and possibly the industry's first) chairside radio. The chassis is similar to model 70. The early and late versions use a different tube lineup.
Net weight (2.2 lb = 1 kg) 45.4 lb (45 lb 6.4 oz) / 20.612 kg
Price in first year of sale 69.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

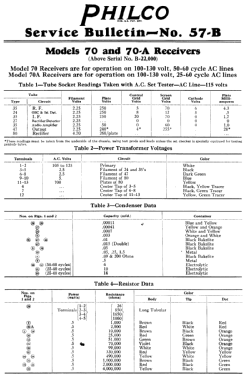

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios 4. Edition

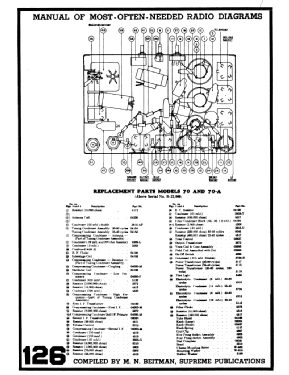

Literature/Schematics (1) Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
