Model 121H 2937

Model 121H 2937; Philco Radio of GB (ID = 633667) Radio Model 121H 2937; Philco Radio of GB (ID = 633668) Radio
Model 121H 2937; Philco Radio of GB (ID = 633666) Radio Model 121H 2937; Philco Radio of GB (ID = 633669) Radio

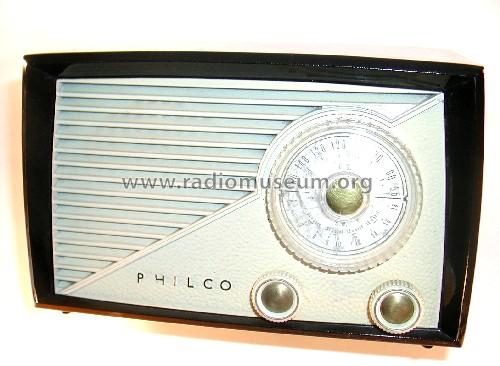

Model 121H 2937; Philco Radio of GB (ID = 801265) Radio
Use red slider bar for more.

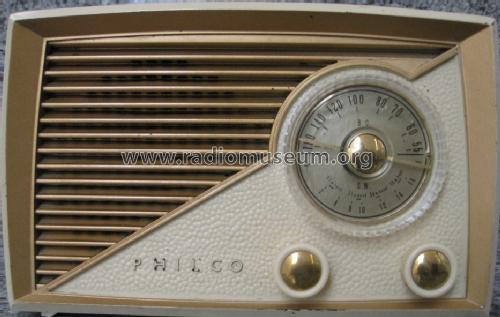

Model 121H 2937; Philco Radio of GB (ID = 633667) Radio
Philco Radio of GB: Model 121H 2937 [Radio] ID = 633667 933x592
Select picture or schematic to display from thumbnails on the right and click for download.
For model Model 121H 2937, Philco Radio of GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Philco Radio of GB
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF89 UCL83 UY85
Conflicting model year with tube data.
The model date contradicts tube dates. [ UBF89 (1956)]
schematic requested
Main principle Superheterodyne (common); ZF/IF 452 kHz; 1 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
Power out
from Radiomuseum.org Model: Model 121H 2937 - Philco Radio of GB
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 230 x 150 x 135 mm / 9.1 x 5.9 x 5.3 inch
Net weight (2.2 lb = 1 kg) 2.050 kg / 4 lb 8.2 oz (4.515 lb)

Model page created by Gil Silva. See "Data change" for further contributors.



All listed radios etc. from Philco Radio of GB
Here you find 251 models, 143 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
