• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94087

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 4 Loudspeakers

• from Radiomuseum.org
• Model: P1002 Ch= P10ST - Philco, Philadelphia Stg. Batt

• Notes

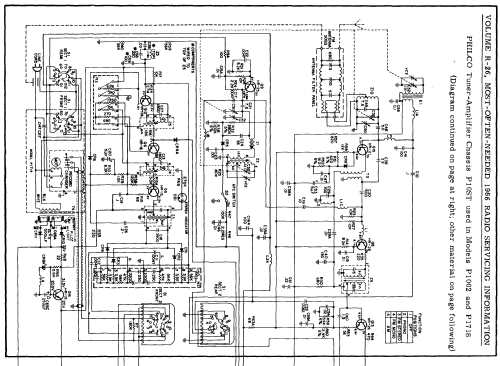

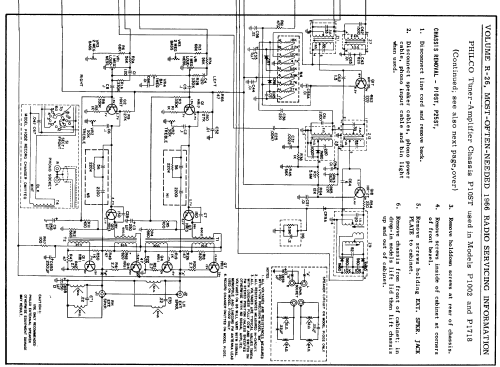

• Chassis P10ST is an AM/FM Stereo Tuner Amplifier used in Models P1002 and P1718.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 26, 1966

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
