• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1941/1942

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 51464

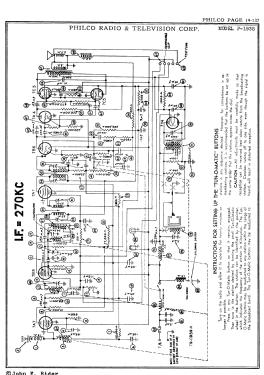

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 7A7 7B8 7A7 7B6 7A4 7C5 7C5 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 270 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: P-1935 Packard - Philco, Philadelphia Stg. Batt

• Notes
• Custom car radio designed for Packard automobiles. Model is equipped with vibrator for generation of B+.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Literature/Schematics (1)
• Philco 1942 RMS Year Book
