T-7 (T-7-124) Code 124 Philco's first transistor radio

T-7 Code 124; Philco, Philadelphia (ID = 133102) Radio

T-7 Code 124; Philco, Philadelphia (ID = 133103) Radio

T-7 Code 124; Philco, Philadelphia (ID = 517371) Radio

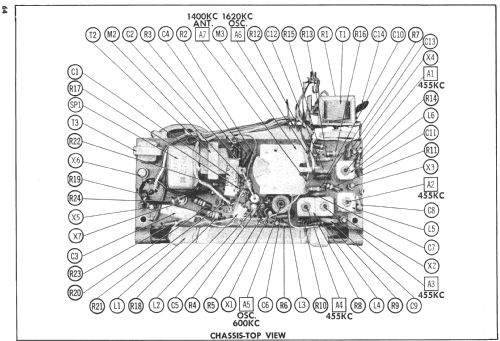

T-7 Code 124; Philco, Philadelphia (ID = 517372) Radio

T-7 Code 124; Philco, Philadelphia (ID = 517373) Radio

T-7 Code 124; Philco, Philadelphia (ID = 517374) Radio

T-7 Code 124; Philco, Philadelphia (ID = 562523) Radio

T-7 Code 124; Philco, Philadelphia (ID = 562524) Radio

T-7 Code 124; Philco, Philadelphia (ID = 562525) Radio

T-7 Code 124; Philco, Philadelphia (ID = 562526) Radio
T-7 Code 124; Philco, Philadelphia (ID = 232904) Radio T-7 Code 124; Philco, Philadelphia (ID = 148441) Radio
T-7 Code 124; Philco, Philadelphia (ID = 150154) Radio T-7 Code 124; Philco, Philadelphia (ID = 563909) Radio
Use red slider bar for more.
T-7 Code 124; Philco, Philadelphia (ID = 232904) Radio
Philco, Philadelphia: T-7 Code 124 [Radio] ID = 232904 300x192
Select picture or schematic to display from thumbnails on the right and click for download.
For model T-7 (T-7-124) Code 124 Philco's first transistor radio, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: L-5113L L-5114L L-5114L L-5113L L-5021L L-5028 L-5028 1N527
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: T-7 Code 124 [Philco's first transistor radio] - Philco, Philadelphia Stg. Batt
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 7 x 1.75 x 4.25 inch / 178 x 44 x 108 mm
Notes The Philco model T-7 series includes Philco's first transistor radio. The first version, model T-7 Code 124, was introduced in 1956 for the 1957 model year, and was followed by T-7 Code 126, which is identical in design except for slight circuit changes and one different transistor for the audio driver. Both of these versions have a painted metal perforated grill which is large enough and soft enough that the owner's thumbs and fingers could dent it just by picking it up. Model T-7X (also marked Code 128) was introduced in 1957 for the 1958 model year, and had an improved case with more durable plastic louvers instead of the perforated metal grill.
External source of data Ernst Erb

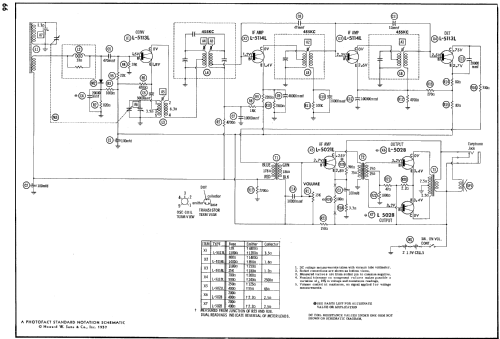

Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957
Mentioned in Philco Home Radio Yearbook 1957; SAMS set 347 folder 11
Literature/Schematics (1) Antique Radio Magazine n.59, February 2004, page 57. Article written in Italian and English.

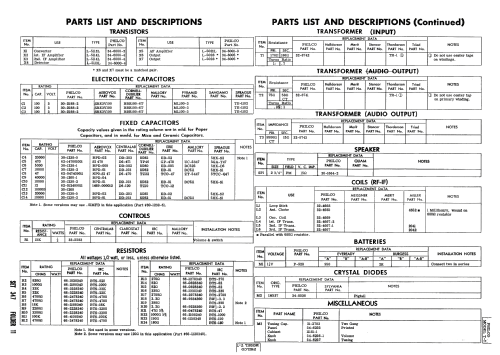

Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 347 Folder 11 Date 2-57)
Literature/Schematics (3) Silicon Chip February 2015, page 94.
