• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 307618

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

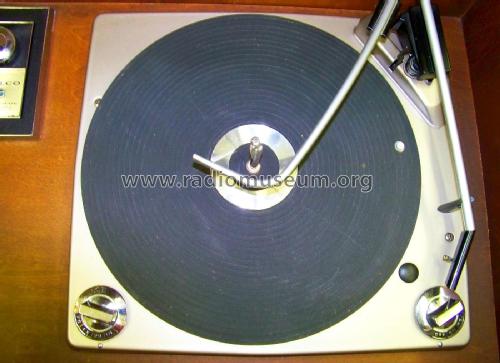

• Model: Q-1771-WA Ch= QD15STX - Philco, Philadelphia Stg. Batt

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Philco Q-1771-WA High Fidelity Console

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 893, Folder 6, June 1967)

• Author
• Model page created by Jack Lockard. See "Data change" for further contributors.
