S-5127

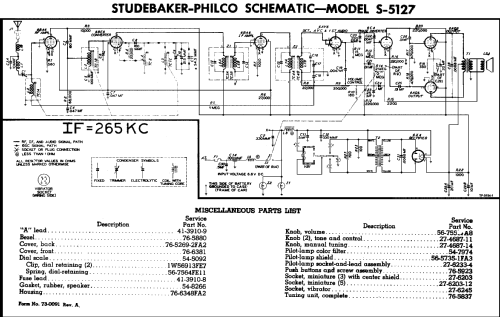

S-5127 ; Philco, Philadelphia (ID = 2517994) Car Radio

S-5127 ; Philco, Philadelphia (ID = 2517995) Car Radio

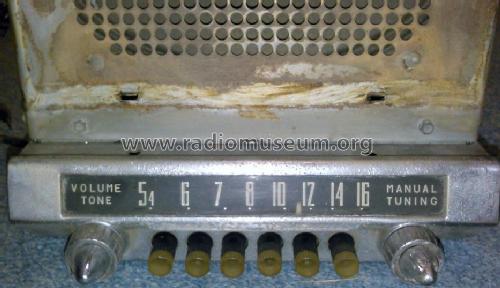

S-5127 ; Philco, Philadelphia (ID = 1845846) Car Radio S-5127 ; Philco, Philadelphia (ID = 1845847) Car Radio

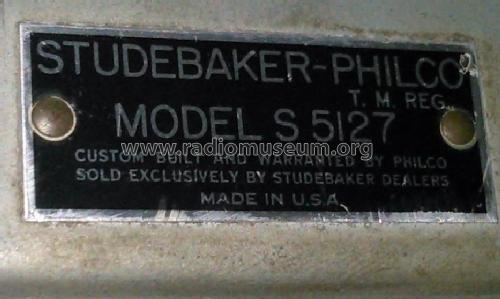

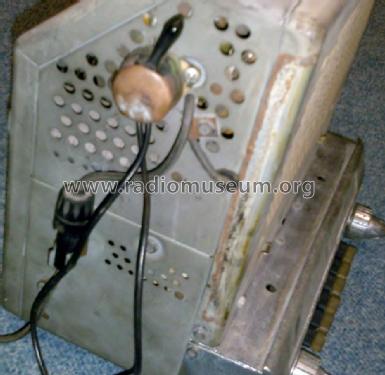

S-5127 ; Philco, Philadelphia (ID = 1845848) Car Radio S-5127 ; Philco, Philadelphia (ID = 1845849) Car Radio
S-5127 ; Philco, Philadelphia (ID = 1845850) Car Radio
Use red slider bar for more.

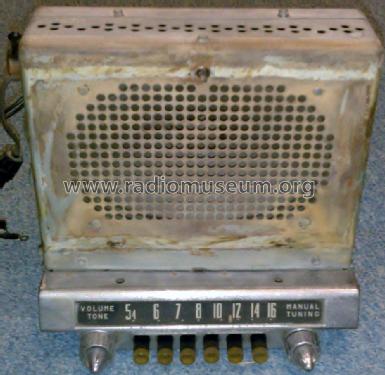

S-5127 ; Philco, Philadelphia (ID = 1845846) Car Radio
Philco, Philadelphia: S-5127 [Car Radio] ID = 1845846 933x908
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-5127, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1951 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 8: 6BA6 6BE6 6BA6 6AV6 6C4 6AQ5 6AQ5 6X4
Main principle Superhet with RF-stage; ZF/IF 265 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6,6 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out 6 W (unknown quality)
from Radiomuseum.org Model: S-5127 - Philco, Philadelphia Stg. Batt
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 10 x 10 x 6 inch / 254 x 254 x 152 mm
Notes This model is equipped with a vibrator VB1 for generation of B+. Unterbaugerät mit eingebautem Lautsprecher für PKW- Armaturenbrett, mechanischer 6- fach- Senderspeicher
Net weight (2.2 lb = 1 kg) 15 lb 0 oz (15 lb) / 6.810 kg
Literature/Schematics (1) Philco Service Auto Radio 1946-1953
