• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 214046

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• T1033 T1233 T1232 T1033 T1001 T-1007 T-1007

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / D: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T-800 Code 124 - Philco, Philadelphia Stg. Batt

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

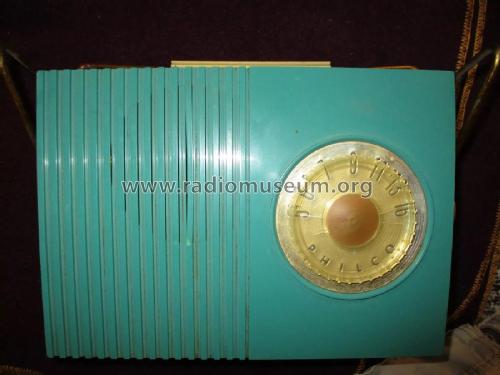

• The Philco Model T-800 (Code 124) is a battery operated 7 transistor portable AM Receiver. BC Band Tuning Range: 535 to 1620KHz.  Cabinet is Turquoise.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
