T-7X Code 128

T-7X Code 128; Philco, Philadelphia (ID = 1179161) Radio

T-7X Code 128; Philco, Philadelphia (ID = 1179162) Radio

T-7X Code 128; Philco, Philadelphia (ID = 1179163) Radio

T-7X Code 128; Philco, Philadelphia (ID = 1179164) Radio

T-7X Code 128; Philco, Philadelphia (ID = 60014) Radio

T-7X Code 128; Philco, Philadelphia (ID = 562533) Radio

T-7X Code 128; Philco, Philadelphia (ID = 562534) Radio

T-7X Code 128; Philco, Philadelphia (ID = 562535) Radio

T-7X Code 128; Philco, Philadelphia (ID = 562536) Radio

T-7X Code 128; Philco, Philadelphia (ID = 608941) Radio
T-7X Code 128; Philco, Philadelphia (ID = 564316) Radio T-7X Code 128; Philco, Philadelphia (ID = 564319) Radio
T-7X Code 128; Philco, Philadelphia (ID = 1605708) Radio
Use red slider bar for more.
T-7X Code 128; Philco, Philadelphia (ID = 564316) Radio
Philco, Philadelphia: T-7X Code 128 [Radio] ID = 564316 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model T-7X Code 128, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: T-1300 T-1299 T-1298 T-1300 T-1001 T-1008 T-1008
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: T-7X Code 128 - Philco, Philadelphia Stg. Batt
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 7 x 1.75 x 4.25 inch / 178 x 44 x 108 mm
Notes The Philco model T-7 series includes Philco's first transistor radio. The first version, model T-7 Code 124, was introduced in 1956 for the 1957 model year, and was followed by T-7 Code 126, which is identical in design except for slight circuit changes and one different transistor. Both of these versions have a painted metal perforated grill which is large enough and soft enough that the owner's thumbs and fingers could dent it just by picking it up.

Model T-7X (also marked Code 128) was introduced in 1957 for the 1958 model year, and had an improved case with more durable plastic louvers instead of the perforated metal grill. It does not use a diode (the other two versions do). There may be found also some other transistors than given here: T-1033 (converter); T-1233 (1st IF Amp.); T-1232, T-1299, or T-1233 (2nd IF Amp.); T-1033 (2nd detector).
Antique Radio Magazine n.59, February 2004, page 57. Article written in Italian and English.
External source of data Ernst Erb

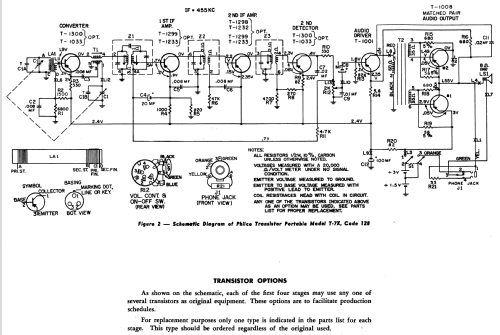

Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Mentioned in Philco Home Radio Yearbook 1958

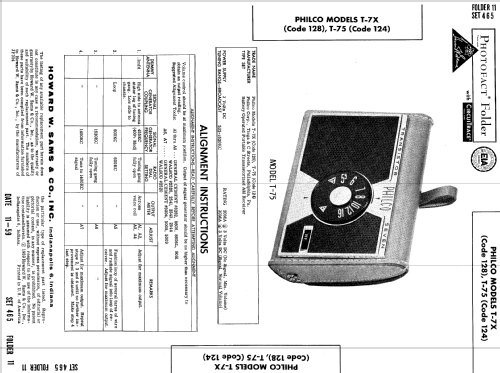

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-59, Set 465, Folder 11)
Literature/Schematics (2) - - Manufacturers Literature


All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Here you find 3745 models, 2123 with images and 3138 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
