Tropic 3214-121

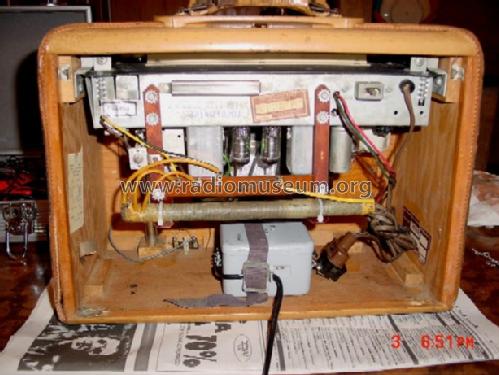

Tropic 3214-121; Philco, Philadelphia (ID = 89927) Radio Tropic 3214-121; Philco, Philadelphia (ID = 89929) Radio

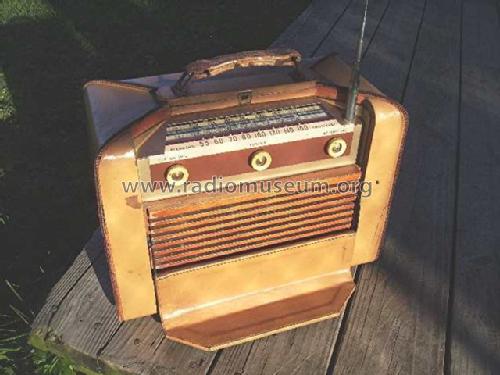

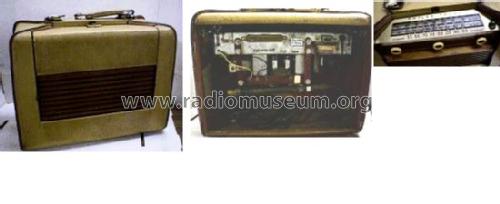

Tropic 3214-121; Philco, Philadelphia (ID = 267157) Radio Tropic 3214-121; Philco, Philadelphia (ID = 555249) Radio
Use red slider bar for more.

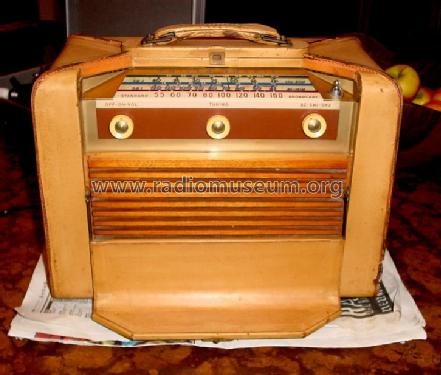

Tropic 3214-121; Philco, Philadelphia (ID = 89927) Radio
Philco, Philadelphia: Tropic 3214-121 [Radio] ID = 89927 727x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tropic 3214-121, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7GT 1U4 1U4 1U5 3V4
schematic requested
Main principle Superhet with RF-stage
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Tropic 3214-121 - Philco, Philadelphia Stg. Batt
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 400 x 295 x 200 mm / 15.7 x 11.6 x 7.9 inch

Model page created by Volker Jeschkeit. See "Data change" for further contributors.



All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Here you find 3737 models, 2110 with images and 3134 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
