• Year
  • 1959
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 156614

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: UH4682S Ch= 10L41U - Philco, Philadelphia Stg. Batt
  • Shape
  • Console with any shape - in general
  • Notes
  • The Philco UH4682S is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 10L41U, VHF tuner T-101E, UHF tuner T-28D and picture tube 21EVP4. Uses 4" x 6" Elliptical PM speaker.

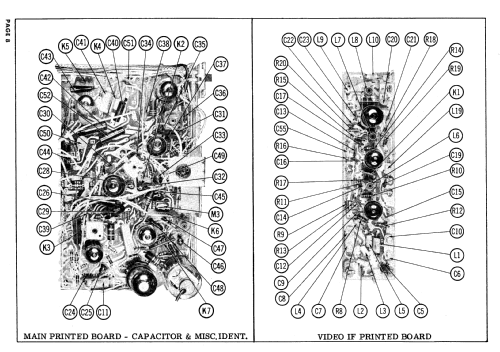

  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
