• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1949 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 51605

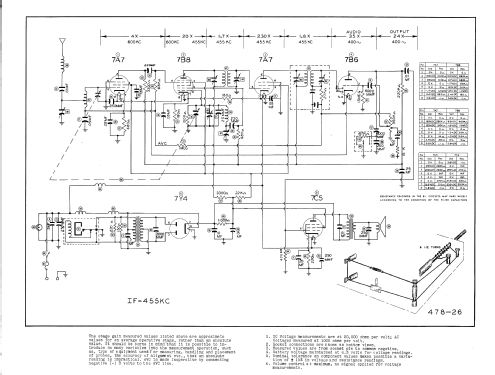

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7A7 7B8 7A7 7B6 7C5 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.7 inch = 17 cm

• Material
• Metal case

• from Radiomuseum.org

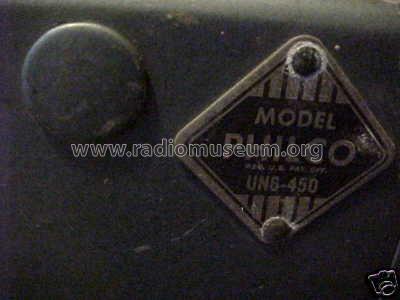

• Model: UN6-450 - Philco, Philadelphia Stg. Batt

• Shape
• Chassis only or for «building in»

• Notes
• This model is equipped with a vibrator for generation of B+.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in

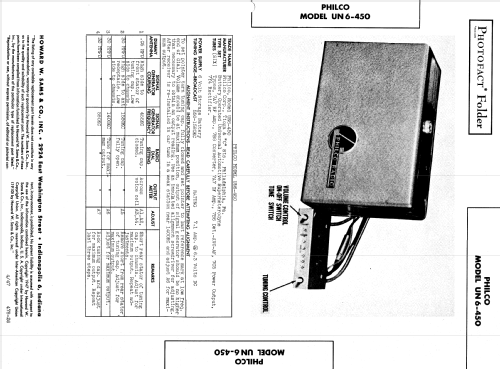

• Photofact Folder, Howard W. SAMS (Set 18, Folder 478-26)

• Literature/Schematics (1)

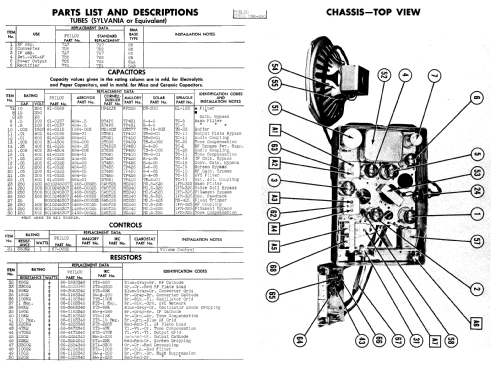

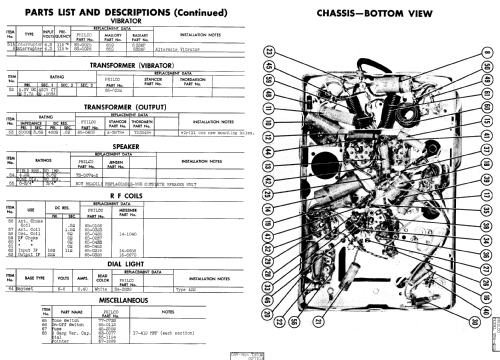

• Philco Service Auto Radio 1946-1953
