• Country
• United States of America (USA)

• Manufacturer / Brand
• Philharmonic Radio Corp.; (where?)

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 240743

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12BA6 12BE6 12BA6 12BA6 12H6 6AQ6 50B5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 inch = 24.1 cm

• Material
• Wooden case

• from Radiomuseum.org

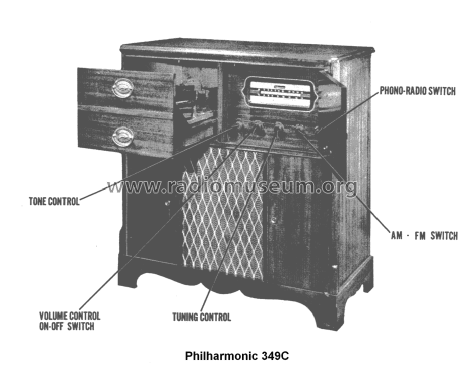

• Model: 349-C - Philharmonic Radio Corp.;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• AC Operated Combination Phono-Radio, AM-FM Superheterodyne Receiver
  with Loop Antenna.

  AM: 540-1620kc; FM: 88-108Mc



• Mentioned in
• Photofact Folder, Howard W. SAMS (496-17 Set 58 Folder 17)

• Author
• Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
