Discoverer 02TR826 (TR826) Ch= 12S

Discoverer 02TR826 Ch= 12S; Philips Australia (ID = 2275122) Television Discoverer 02TR826 Ch= 12S; Philips Australia (ID = 1193995) Television
Use red slider bar for more.
Discoverer 02TR826 Ch= 12S; Philips Australia (ID = 2275122) Television
Philips Australia: Discoverer 02TR826 Ch= 12S [Television] ID = 2275122 1400x1416
Select picture or schematic to display from thumbnails on the right and click for download.
For model Discoverer 02TR826 (TR826) Ch= 12S, Philips Australia:

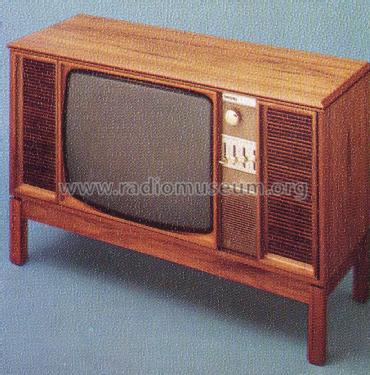

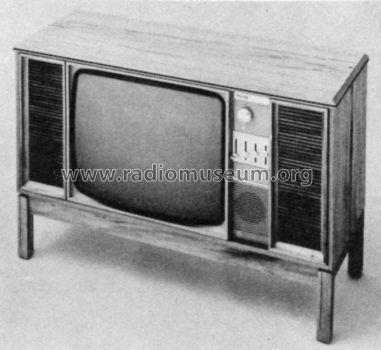

From brochure, courtesy of Andrew McCallum.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1972 Category: Television Receiver (TV) or Monitor
Valves / Tubes 5: 6GV8 6CM5 6AL3 1S2 A61-120W
Semiconductors (the count is only for transistors) 25: BF200 BF182 BF183 BF196 BF194 BC158 BF196 BF173 BC148 BC149 BF195 BF195 BC148 AC128 AC187 AC188 BC148 BC148 BC148 BC148 BC148 BF178 OC947 BC147 BF178 OA90 OA90 unknown_diode AA119 AA119 BY126 BY126 BY126 BY126 BY126 BY126 BY126 BY126 OA91 OA91
Main principle Superhet with RF-stage; ZF/IF 36500/5500 kHz; 3 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 240; 255 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Discoverer 02TR826 Ch= 12S - Philips Australia
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 40.75 x 27 x 15.25 inch / 1035 x 686 x 387 mm
Notes

24" B&W wideboy television set tunes the 13 standard Australian channels (tuner type NT3022).

Cabinet finishes available in Gloss Maple, Matt Walnut & Teak.

Price in first year of sale 319.00 AUS $
Literature/Schematics (1) - - Manufacturers Literature (Philips Service Manual, december 1972.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (Group 15, November 1972, Page P1-3.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
