Magnascope 02TV511 Ch= 12S
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1971/1972
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 215513
From brochure, courtesy of Andrew McCallum.
- Number of Tubes
- 5
- Number of Transistors
- 25
- Semiconductors
- BF200 BF182 BF183 BF196 BF194 BC158 BF196 BF173 BC148 BC149 BF195 BF195 BC148 AC128 AC187 AC188 BC148 BC148 BC148 BC148 BC148 BF178 OC947 BC147 BF178 OA90 OA90 unknown_diode AA119 AA119 BY126 BY126 BY126 BY126 BY126 BY126 BY126 BY126 OA91 OA91
- Main principle
- Superhet with RF-stage; ZF/IF 36500/5500 kHz; 3 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 240; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Magnascope 02TV511 Ch= 12S - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 29 x 31.875 x 14.375 inch / 737 x 810 x 365 mm
- Notes
-

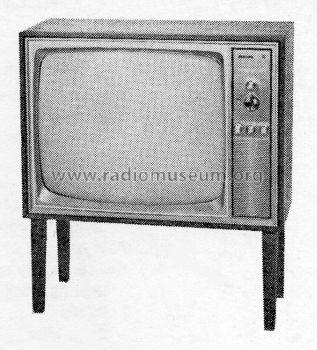

25" lowboy B&W television set tunes the 13 standard Australian channels (tuner type NT3022). Available with either straight or splayed legs.
Cabinet finishes available in Matt Maple, Matt Walnut & Teak.
- Price in first year of sale
- 279.00 AUS $
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Service Manual, April 1972.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Group 15, November 1972, Page P1-3.)
