- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1968 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161407
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15.5 cm = 6.1 inch
- Power out
- 0.8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

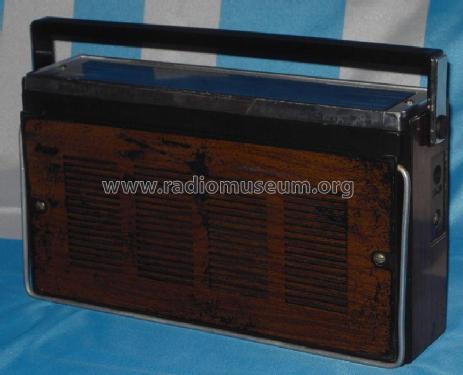

- Model: 11RL432 /00 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 175 x 80 mm / 11.8 x 6.9 x 3.1 inch
- Notes
- Empfänger ist für KW mit einer ausklappbaren Rahmenantenne ausgestattet. Externe Anschlüsse: 6 V, Ohrhörer über 3,5 mm Klinke, Antennenbuchse, TAB-DIN-Buchse. Ferritantenne: 205 mm rund 10 mm. Batterien 4 x R20.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Author
- Model page created by Alfred Przybilla. See "Data change" for further contributors.
