- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 307666
Pic. just as type proof! (-08)

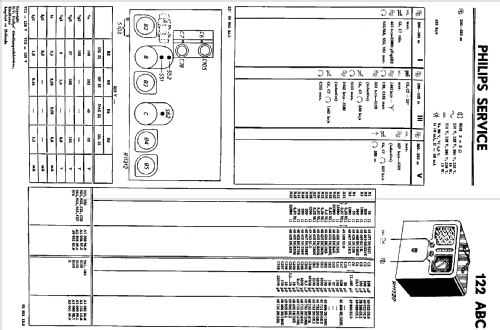

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; Export model
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 110-245 / 4,5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 122ABC -08 - Philips; Eindhoven tubes

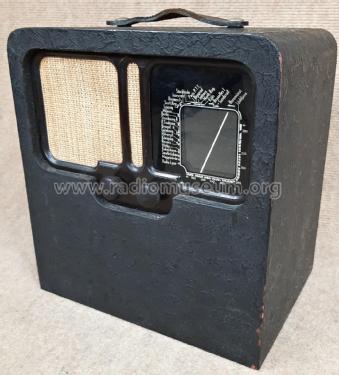

- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 290 x 180 mm / 10.2 x 11.4 x 7.1 inch
- Notes
-
Heizung mit drei Flachbatterien 4,5 V parallel geschaltet.
Das Philips Modell 122ABC -08 ist eine Exportausführung für Dänemark und Norwegen.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
