• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7213

• • Brand: Deutsche Philips-Ges.

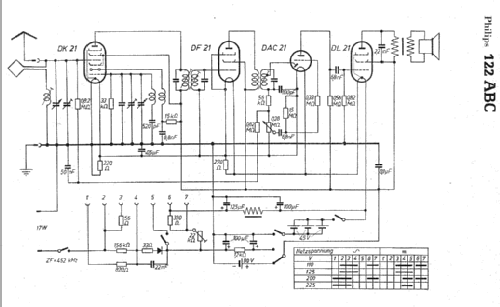

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK21 DF21 DAC21 DL21

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 122ABC - Philips Radios - Deutschland

• Notes
• Propellerskala

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.

Reparaturen am Philips 122ABC, in "Radio_Mentor 1949 H. 5

161 KB
