For model 122ABC, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK21 DF21 DAC21 DL21
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110-245 / 4,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: 122ABC - Philips; Eindhoven tubes
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 290 x 180 mm / 10.2 x 11.4 x 7.1 inch
Notes

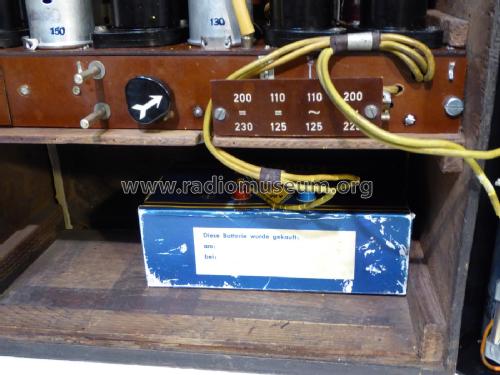

Heizung mit drei Flachbatterien 4,5 V parallel geschaltet.

Siehe auch das niederländische Modell 122ABC mit Suffix -06 und -08 für den Export nach Dänemark und Norwegen.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
