12B711 /00X /00Z

12B711 /00X /00Z; Philips; Eindhoven (ID = 1611003) Television 12B711 /00X /00Z; Philips; Eindhoven (ID = 1611004) Television
12B711 /00X /00Z; Philips; Eindhoven (ID = 1611006) Television 12B711 /00X /00Z; Philips; Eindhoven (ID = 2273483) Television
12B711 /00X /00Z; Philips; Eindhoven (ID = 2273484) Television 12B711 /00X /00Z; Philips; Eindhoven (ID = 2273485) Television
12B711 /00X /00Z; Philips; Eindhoven (ID = 2273486) Television
Use red slider bar for more.

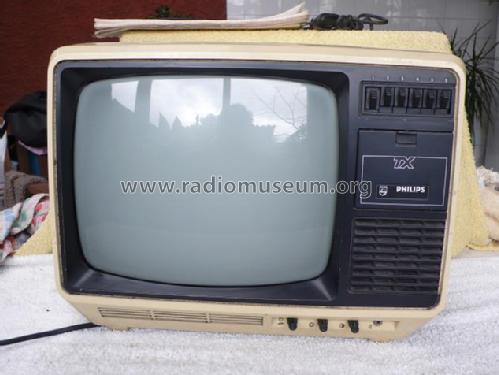

12B711 /00X /00Z; Philips; Eindhoven (ID = 1611003) Television
Philips; Eindhoven: 12B711 /00X /00Z [Television] ID = 1611003 634x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model 12B711 /00X /00Z, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1977 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line plus power jack, mostly with battery or storage battery / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 1.9 W (2 W max.)
from Radiomuseum.org Model: 12B711 /00X /00Z - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 290 x 320 mm / 15 x 11.4 x 12.6 inch
Notes

Portable B/W television with VHF and UHF Tuner. Reception UHF in positive modulation and AM sound modulation, suitable for Belgium and perhaps other markets ("Multi 625").

Net weight (2.2 lb = 1 kg) 6.9 kg / 15 lb 3.2 oz (15.198 lb)
Price in first year of sale 8'000.00 pte

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
