133

133; Philips Australia (ID = 1804685) Radio

133; Philips Australia (ID = 1804686) Radio

133; Philips Australia (ID = 1804687) Radio

133; Philips Australia (ID = 1804688) Radio
133; Philips Australia (ID = 2406861) Radio 133; Philips Australia (ID = 2406864) Radio
133; Philips Australia (ID = 2172356) Radio
Use red slider bar for more.
133; Philips Australia (ID = 2406861) Radio
Philips Australia: 133 [Radio] ID = 2406861 1323x886
Select picture or schematic to display from thumbnails on the right and click for download.
For model 133, Philips Australia:
The control knobs are volume, on-off with tone, band switch and tuning.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6N8 6N8 6M5 6X5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 220-240; 250-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 133 - Philips Australia
Material Bakelite case
Shape Tablemodel, with any shape - general.

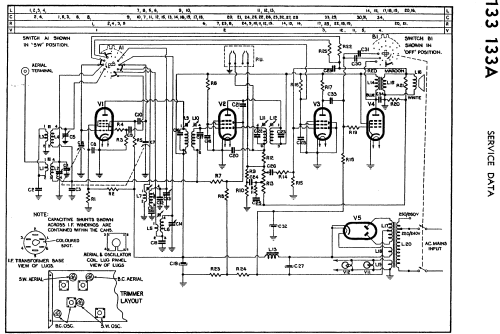

Circuit diagram reference Australian Official Radio Service Manual Vol. X

Model page created by Stuart Irwin. See "Data change" for further contributors.
