Town & Country 148C

Town & Country 148C; Philips Australia (ID = 2173981) Radio

Town & Country 148C; Philips Australia (ID = 2173982) Radio
Town & Country 148C; Philips Australia (ID = 923939) Radio Town & Country 148C; Philips Australia (ID = 923940) Radio
Town & Country 148C; Philips Australia (ID = 923941) Radio Town & Country 148C; Philips Australia (ID = 923942) Radio

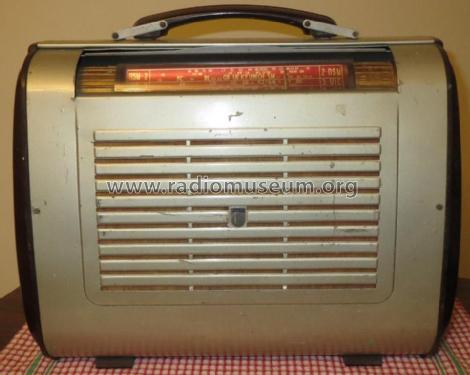

Town & Country 148C; Philips Australia (ID = 2409492) Radio
Use red slider bar for more.

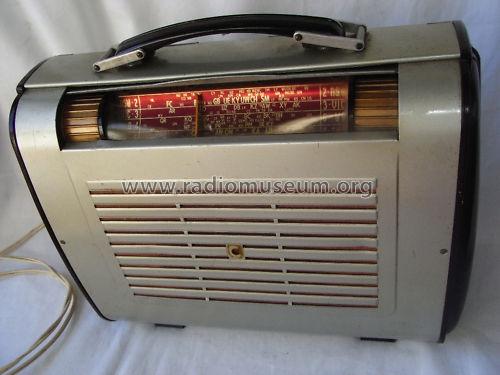

Town & Country 148C; Philips Australia (ID = 923939) Radio
Philips Australia: Town & Country 148C [Radio] ID = 923939 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Town & Country 148C, Philips Australia:
ebay.com VK:treat_n_treasures #250743952726

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1T4 1R5 1T4 1S5 3V4 EZ82
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 200-210; 230-240; 250 / 9 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Town & Country 148C - Philips Australia
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 280 x 150 mm / 13 x 11 x 5.9 inch
Notes









Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 38.85 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Philips Radioplayer Modification Sheet for Models 148/B:/C:/D., May 1956.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P7.)

Model page created by Aglef Tröger. See "Data change" for further contributors.
