• Year
  • 2000
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 292365

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Video-Taperecorder/-Player; Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 3 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

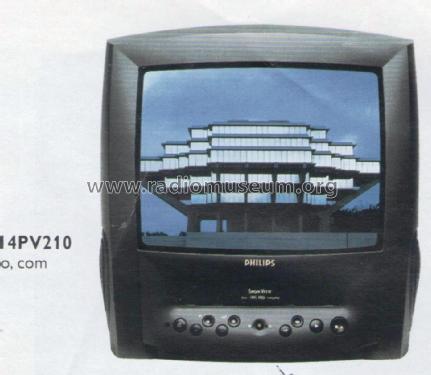

  • Model: 14PV210/01 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 392 x 398 x 407 mm / 15.4 x 15.7 x 16 inch
  • Notes
  • Combi TV+VCR 14" black hybrid screen, with FM, digital tuning, VHF/UHF 99 presets, teletext, ACI automatic channel installation, autostore, smart picture, channel S, pré- tuning allocation, menu control, VCR  2 heads, aut/cleaning heads, autotracking, viss, osd,  vps, pdc, back up, plug & play, showView, 3 W musical power, 1 speaker, 2 scarts , A/V (cinch) front, headphone jack, remote control.

  • Net weight (2.2 lb = 1 kg)
  • 12.6 kg / 27 lb 12.1 oz (27.753 lb)
  • Mentioned in
  • - - Manufacturers Literature (Catalogo Philips 2000, page 61)
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
