• Year
  • 1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 207398

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240; 250-260 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org

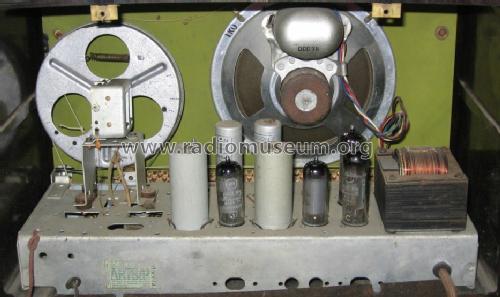

  • Model: 152 - Philips Australia
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 400 x 256 x 195 mm / 15.7 x 10.1 x 7.7 inch
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. XII
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
