International - Radioplayer 161

International - Radioplayer 161; Philips Australia (ID = 2036809) Radio

International - Radioplayer 161; Philips Australia (ID = 2036808) Radio
Use red slider bar for more.
International - Radioplayer 161; Philips Australia (ID = 2036809) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6BH5 6BD7 6M5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 240-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: International - Radioplayer 161 - Philips Australia
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

Colours available: Burgundy , Ivory & Walnut.

Price in first year of sale 30.45 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XIV
Literature/Schematics (1) - - Manufacturers Literature (Philips Radioplayer Service Data, July 1955.)

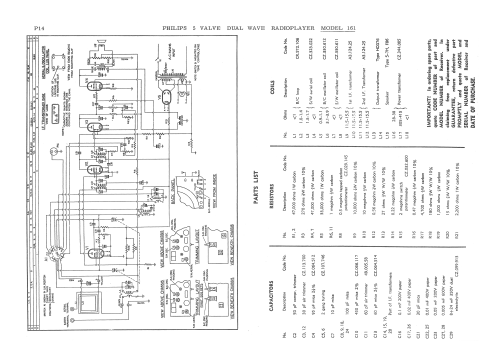

Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P14.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 14, 1956, Page 243.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
