Town & Country 168

Town & Country 168; Philips Australia (ID = 2174598) Radio

Town & Country 168; Philips Australia (ID = 2174599) Radio

Town & Country 168; Philips Australia (ID = 2174600) Radio

Town & Country 168; Philips Australia (ID = 2174601) Radio
Town & Country 168; Philips Australia (ID = 2111343) Radio Town & Country 168; Philips Australia (ID = 2111344) Radio
Town & Country 168; Philips Australia (ID = 2111349) Radio Town & Country 168; Philips Australia (ID = 2111351) Radio
Use red slider bar for more.
Town & Country 168; Philips Australia (ID = 2111343) Radio
Philips Australia: Town & Country 168 [Radio] ID = 2111343 1082x1127
Select picture or schematic to display from thumbnails on the right and click for download.
For model Town & Country 168, Philips Australia:
The last model of what were called "tinnies".

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 1T4 1R5 1T4 1S5 DM71 3V4 6V4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 200-250 / 1.5 & 2 x 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Town & Country 168 - Philips Australia
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Notes

Aluminium case with bakelite end plates.  The dial scale is covered with a shutter which, when opened, turns the set on.  An LT7P selenium rectifier is used for the filament supply when using mains power.

See also Fleetwood Model 1054.

Price in first year of sale 43.05 AUS £

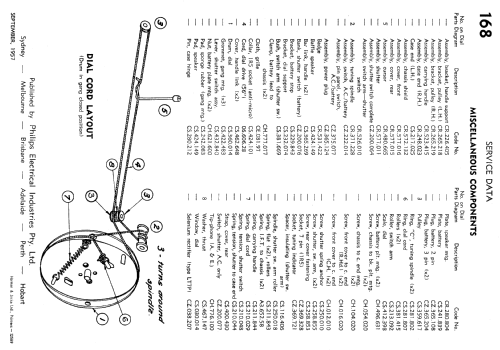

Literature/Schematics (1) - - Manufacturers Literature (Philips Radioplayer Service Data.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P24.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
