Grand 177A

Grand 177A; Philips Australia (ID = 2107397) Radio

Grand 177A; Philips Australia (ID = 2175861) Radio

Grand 177A; Philips Australia (ID = 2175864) Radio

Grand 177A; Philips Australia (ID = 2175865) Radio

Grand 177A; Philips Australia (ID = 2175868) Radio
Grand 177A; Philips Australia (ID = 2175494) Radio
Use red slider bar for more.
Grand 177A; Philips Australia (ID = 2175494) Radio
Philips Australia: Grand 177A [Radio] ID = 2175494 500x465
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grand 177A, Philips Australia:

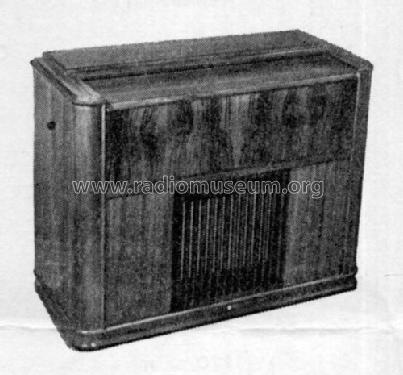

Philips model 177 from service manual title page. Same cabinet as 177A.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6AN7 6BH5 6BD7 6BH5 6BD7 6M5 6M5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 4 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-230; 240-250 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Grand 177A - Philips Australia
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

A Philips type AG1000 record changer is used.

Cabinet finishes available in Walnut, Rosewood, Rose Mahogany, Antique Mahogany, Maple & Sycamore.

Price in first year of sale 157.50 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XIV
Literature/Schematics (1) - - Manufacturers Literature (Philips Radioplayer Service Data, Nov 1955.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. series Vol. 1 1963, Page P30.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
