2007

Philips; Eindhoven (tubes international!); Miniwatt

Data

Forum

Pictures

Collections

Country
Netherlands

Manufacturer / Brand
Philips; Eindhoven (tubes international!); Miniwatt

Year
1929–1931

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
7459

Schematics

2007; Philips; Eindhoven (ID = 2577356) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 2577357) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 142336) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 142338) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 142337) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 134617) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 134618) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 135320) Speaker-P — Philips; Eindhoven 2007 (1)
Gemessen: Max. Durchmesser 45 cm.

2007; Philips; Eindhoven (ID = 135321) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 139447) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 142339) Speaker-P — Philips; Eindhoven 2007 (2)

2007; Philips; Eindhoven (ID = 75157) Speaker-P — Philips; Eindhoven 2007 (1)
Philips Bratpfanne D=450mm

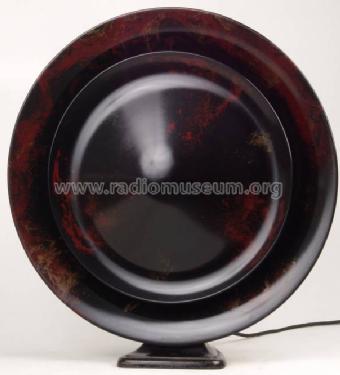

2007; Philips; Eindhoven (ID = 227229) Speaker-P — Philips; Eindhoven 2007 (1)

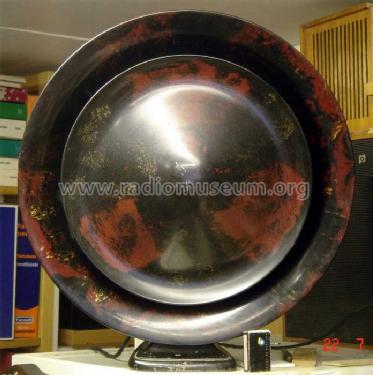

2007; Philips; Eindhoven (ID = 243776) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 243777) Speaker-P — Philips; Eindhoven 2007 (1)

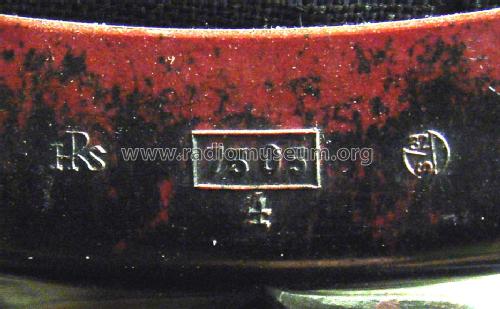

2007; Philips; Eindhoven (ID = 243778) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 255195) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 384149) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 384150) Speaker-P — Philips; Eindhoven 2007 (1)

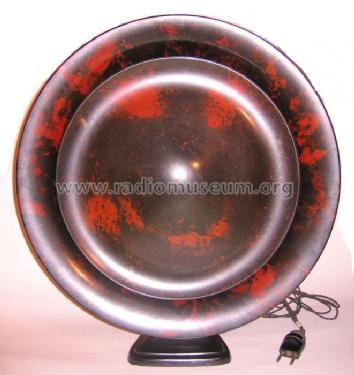

2007; Philips; Eindhoven (ID = 400716) Speaker-P — Philips; Eindhoven 2007 (1)
with switchable impedance front

2007; Philips; Eindhoven (ID = 400717) Speaker-P — Philips; Eindhoven 2007 (1)
sideview

2007; Philips; Eindhoven (ID = 568428) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 568429) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 763874) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 807851) Speaker-P — Philips; Eindhoven 2007 (2)
Original tech. paper.

2007; Philips; Eindhoven (ID = 1004060) Speaker-P — Philips; Eindhoven 2007 (2)
publicidad de catalogo

2007; Philips; Eindhoven (ID = 1008824) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 1064777) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 1064778) Speaker-P — Philips; Eindhoven 2007 (1)

2007; Philips; Eindhoven (ID = 1064779) Speaker-P — Philips; Eindhoven 2007 (1)

Technical Specifications

Power type and voltage
No Power needed

Loudspeaker
Magnetic loudspeaker (reed) of high quality (4 magnet poles). / Ø 45 cm = 17.7 inch

Power out
0.3 W (unknown quality)

Material
Bakelite case

from Radiomuseum.org
Model: 2007 - Philips; Eindhoven tubes

Dimensions (WHD)
450 x 480 x 130 mm / 17.7 x 18.9 x 5.1 inch

Notes
Magnetic driver model Philips 2044, impedance switchable to 500, 1500 or 2000 ohms Designed by Louis Kalff, Industrie-Designer by Philips, NL.

Net weight (2.2 lb = 1 kg)
3.2 kg / 7 lb 0.8 oz (7.048 lb)

Price in first year of sale
113.00 RM

Source of data
Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb

Mentioned in
Katalog Radio-Zentrale Prohaska 1930/31 (dick)

Picture reference
Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
