• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 266282

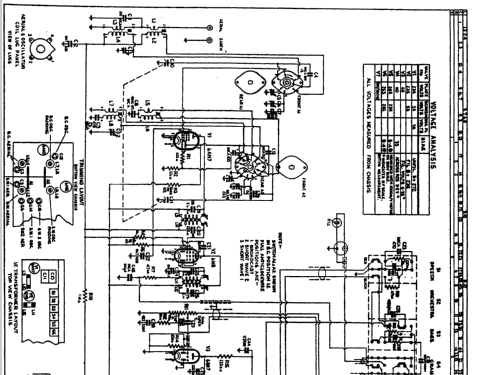

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6AN7 6N8 6BD7 6BD7 6M5 6M5 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Oslo 203 - Philips Australia

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Philips 203 Oslo

  In a graceful Swedish cabinet - ash blonde or summergold, this seven valve, world range radiogram features band-spread short wave, powerful push-pull amplifier for high-fidelity sound, 2 speakers with cross-over filter, new push button controls - tone pre-selector buttons, extra tone-control knob shades bass or treble. Two high fidelity pick-ups - sapphire and diamond. (MINGAY'S PRICE SERVICE)

  Philips type AG1014 record changer.

• Price in first year of sale
• 152.25 AUS £

• Mentioned in
• Mingay's Price Service (Nov 1958 & Feb 1959.)

• Literature/Schematics (1)

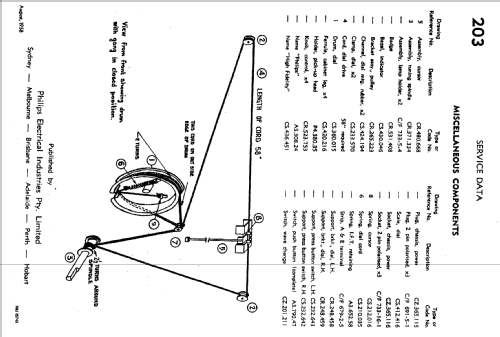

• -- Original-techn. papers. (Philips Radioplayer Service Data.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P37.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
