• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1958–1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 266283

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6AN7 6N8 6BD7 12AX7 6BR5 6CW5 6CW5 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: HI-Z 204A - Philips Australia

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

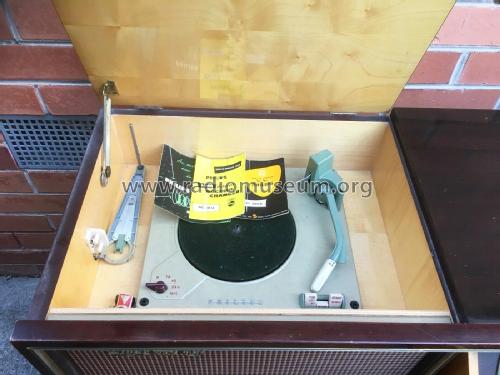

• Philips Hi-Z Model 204

  An entirely new experience in music - with purity of tone never before possible! Wonderful Philips Hi-Z circuitry (no output transformer is used) and exclusive Philips high impedance speakers reduce distortion to below 1% - less than the human ear can detect! Two special Hi-Z speakers, including one twin-cone mounted in sealed enclosure, cover widest frequency range (20 - 25,000 cycles per second). Exclusive push-button controls operate radio, gramo. and "off" switches; also bass, orchestra and speech tone-pre-selection system. Two manual tone-controls provide treble boost and cut, for delicate shading of high and low notes. Philips automatic push-button, four speed, three-way record changer ensures perfect record reproduction, free from "wow" or "flutter". Ample reserve from eight valves, including magic-eye tuning indicator for easy, accurate station selection. Built-in aerial. Solid-core cabinet with large accoustic baffle hand polished in rose-mahogany or maple, all with genuine sycamore interior. Generous record storage. (MINGAY'S PRICE SERVICE)

• Price in first year of sale
• 205.00 AUS £

• Mentioned in
• Mingay's Price Service (Feb 1959 & Feb 1960.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Philips Service Data, March 1959.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P38.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
