For model 2113, Philips Radios - Deutschland:
Philips 2113

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1929/1930 Category: Loudspeaker, headphone or earphone
schematic requested
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 2113 - Philips Radios - Deutschland
Material Bakelite case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 525 x 735 x 250 mm / 20.7 x 28.9 x 9.8 inch

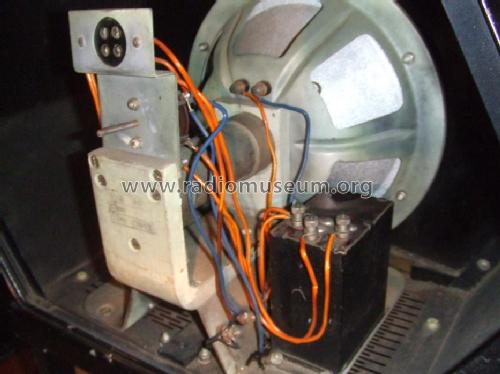

Notes 7-eckiges Trolitgehäuse, kurze oder lange Beine , tone corrector, impedance transformer
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Source of data Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
